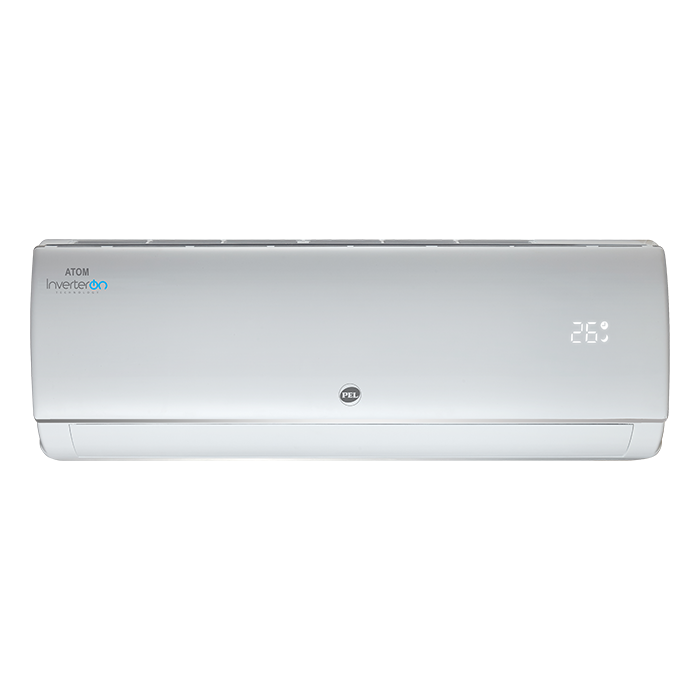

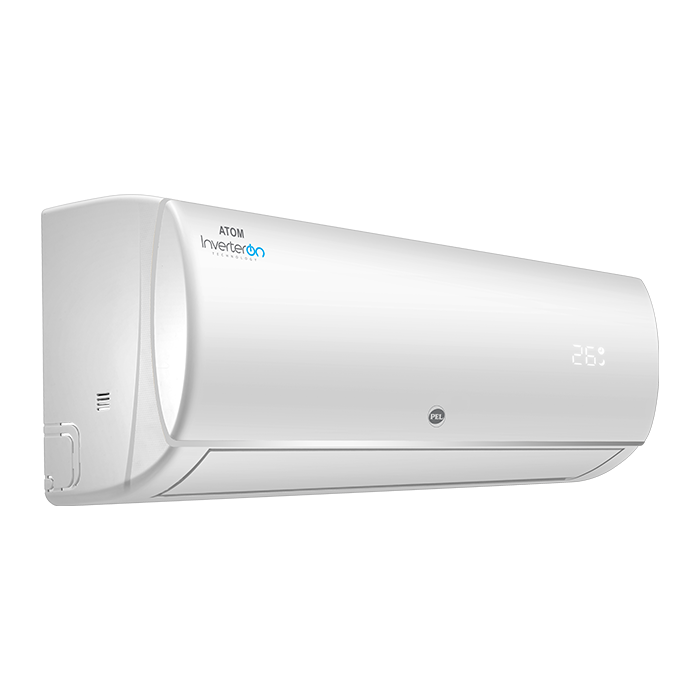

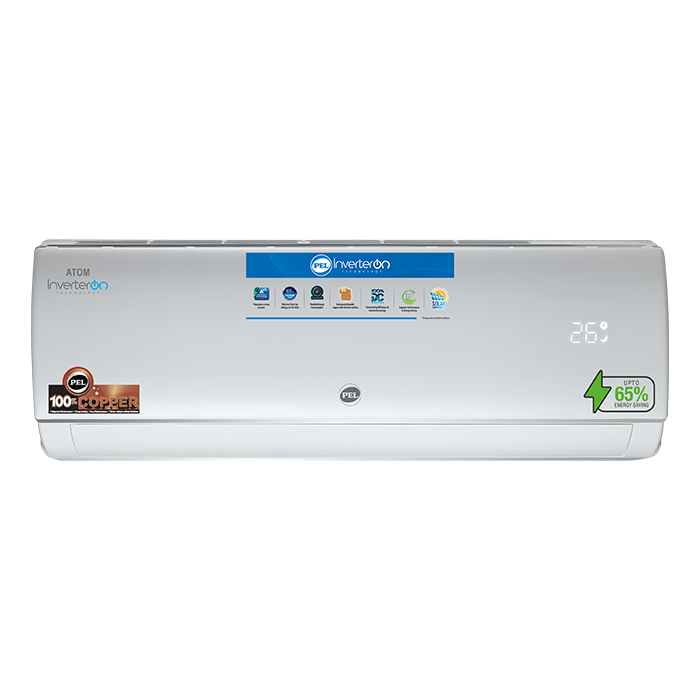

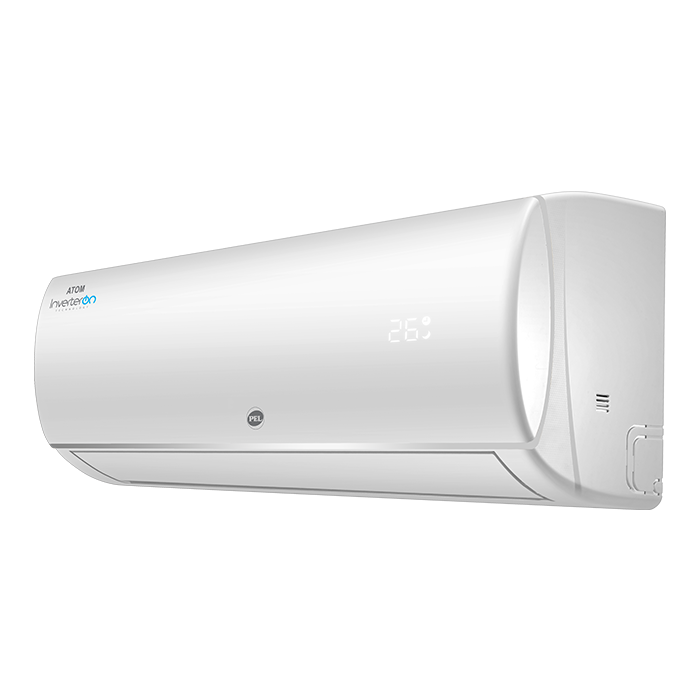

× ATOM Inverter (H&C) PEL Air Conditioner

ATOM Inverter (H&C) PEL Air Conditioner

Regular price Rs.105,500.00
Sale price Rs.105,500.00 Regular price
Unit price
Save
Order on WhatsApp
ATOM Inverter (H&C) PEL Air Conditioner

ATOM Inverter (H&C) PEL Air Conditioner

Product Specifications

12K ATOM Split AC Specifications

Specification Details
Rated Capacity - Cooling3400 (1000-3770) W
Rated Capacity - Heating3420 (1000-3810) W
Rated Running Current - Cooling5.8 A
Rated Running Current - Heating4.5 A
Voltage Range165-265 V
Rated Input - Cooling1130 (290-1500) W
Rated Input - Heating1005 (290-1720) W
CompressorRotary
Power Supply Source220-240V~/50Hz/1P
RefrigerantR32 Gas
Expansion DeviceCopper
Indoor Noise Level43/40/38/31/27/22 dB(A)
Outdoor Noise Level54 dB(A)
Indoor Unit Weight7 Kg
Outdoor Unit Weight20 Kg
Indoor Dimensions777 × 250 × 201 mm
Outdoor Dimensions712 × 276 × 459 mm
Indoor Package Dimensions840 × 315 × 260 mm
Outdoor Package Dimensions775 × 325 × 530 mm

Split AC Installation Cost

Description (Wall Mounted Split AC 1-2 Ton) Tariff (PKR)
PEL Technician Installation4500
Dismantling Charges (Previous AC)2000
Extra Copper Pipe (RFT)750
PVC Drain Pipe (RFT)100
Simple Grooving without Pipe Concealing (RFT)150
Iron Frame Charges (Powder Coated)2000
Filling Holes with White Plaster of Paris (RFT)200
PVC Duct for Refrigeration Pipe (RFT)400
Additional Gas Charging (if required, more than 10ft outdoor height) R-22: 350 / RFT
R410a: 500 / RFT
